Browse categories and find the perfect data acquisition products for your application. Dewesoft offers data acquisition systems for nearly any test-case scenario, from modular DAQ systems and portable all-in-one instruments to rugged DAQ devices and high-channel-count rack-mountable systems. We deliver turn-key test and measurement solutions that include installation and mounting accessories, cables, and traceable calibration certificates. Dewesoft is your one-stop shop for all data acquisition needs. |
|
DAQ systemsDewesoft data acquisition systems are rugged, modular, and easy to use. Our signal conditioners are compatible with virtually every type of sensor. You can also record video, CAN bus, GPS, Ethernet, and many other digital data formats, all fully synchronized. Our instruments can be connected together via EtherCAT or USB for system expandability. DewesoftX software has long been recognized as one of the world’s most versatile and user-friendly DAQ software platforms, including free updates for the lifetime of the system. Dewesoft delivers top technology, outstanding quality, competitive pricing, and an industry-leading 7-year warranty. |
Portable DAQ systemsPortable data acquisition systems are fully integrated instruments for data acquisition, display, and secure onboard storage. Their powerful signal conditioning and processing capabilities make them ideal for field, industrial, and laboratory test and measurement applications. High galvanic isolation of analog amplifiers and power supply circuits protects the instruments from ground loops and ensures the highest signal quality. |
Rugged DAQ systemsDewesoft rugged DAQ recorders and loggers are designed for harsh environments. IP67 protection ensures that they are waterproof and dustproof. Single and multi-channel KRYPTON modules can be placed anywhere and daisy-chained using a single EtherCAT cable. They are shock resistant up to 100 g and can operate in a wide temperature range from -40 °C to 85 °C. SIRIUS waterproof systems offer higher sample rates, wider dynamic range, IP67 protection, and an operating range from -40 °C to 60 °C. These instruments combine high performance with real-world durability. |
DAQ and Control SystemsUntil recently, high-speed data acquisition and real-time control belonged to completely different worlds. DAQ systems were not natively real-time devices, while PLCs lacked advanced signal conditioning and dynamic recording capabilities. Dewesoft changed that by developing powerful DAQ systems with one or even dual-redundant EtherCAT interfaces. These systems can record hundreds of analog and digital channels at full speed while simultaneously sending data in parallel to any third-party EtherCAT master controller. High-speed DAQ and real-time control have finally come together. |
DAQ softwareDewesoft was among the first data acquisition software platforms capable of recording video fully synchronized with analog and digital data. It quickly became a market leader thanks to its innovative, easy-to-use, and highly customizable user interface. Despite its increasing power, DewesoftX remains fast and intuitive. Users can record every signal, every sensor, plus bus data, video, GPS, and more. You can design your own screens, analyze data in real time and after recording, create reports, and export data to many different formats. DewesoftX is included with all Dewesoft DAQ hardware and comes with free lifetime updates. |
SensorsDewesoft offers a wide range of high-quality sensors to support your measurement needs. We manufacture data acquisition cameras, GNSS receivers, IMU sensors, INS systems, current clamps, tacho probes, accelerometers, and microphones. For sensors such as accelerometers, microphones, and others, we work with leading manufacturers including Dytran, PCB, G.R.A.S, Kistler, and other trusted brands to provide highly reliable solutions. All of these sensors are designed to integrate seamlessly with Dewesoft DAQ systems, ensuring maximum measurement accuracy. Most of our sensors also include TEDS chips for automatic sensor recognition. |
ServicesDewesoft systems are delivered with an industry-leading 7-year warranty. However, every measurement device requires occasional service and calibration to continue performing at its best. We offer manufacturer-level calibration services for our instruments and sensors, including current clamps and microphones. Dewesoft is also an ISO 17025 certified company, fully qualified to issue traceable ISO calibration certificates. Full warranty and calibration support are available through our offices worldwide. |
Monitoring and IoT DevicesDewesoft develops innovative DAQ instruments and loggers for structural health monitoring and machine condition monitoring applications. Our instruments are IoT-ready, fully network compatible, and also capable of standalone operation. Our broad range of devices can be used together or separately in flexible combinations, allowing you to solve a wide range of measurement and monitoring challenges. From simple monitoring to advanced applications requiring on-site signal processing and real-time uplinks to control centers, Dewesoft has the right solution. |

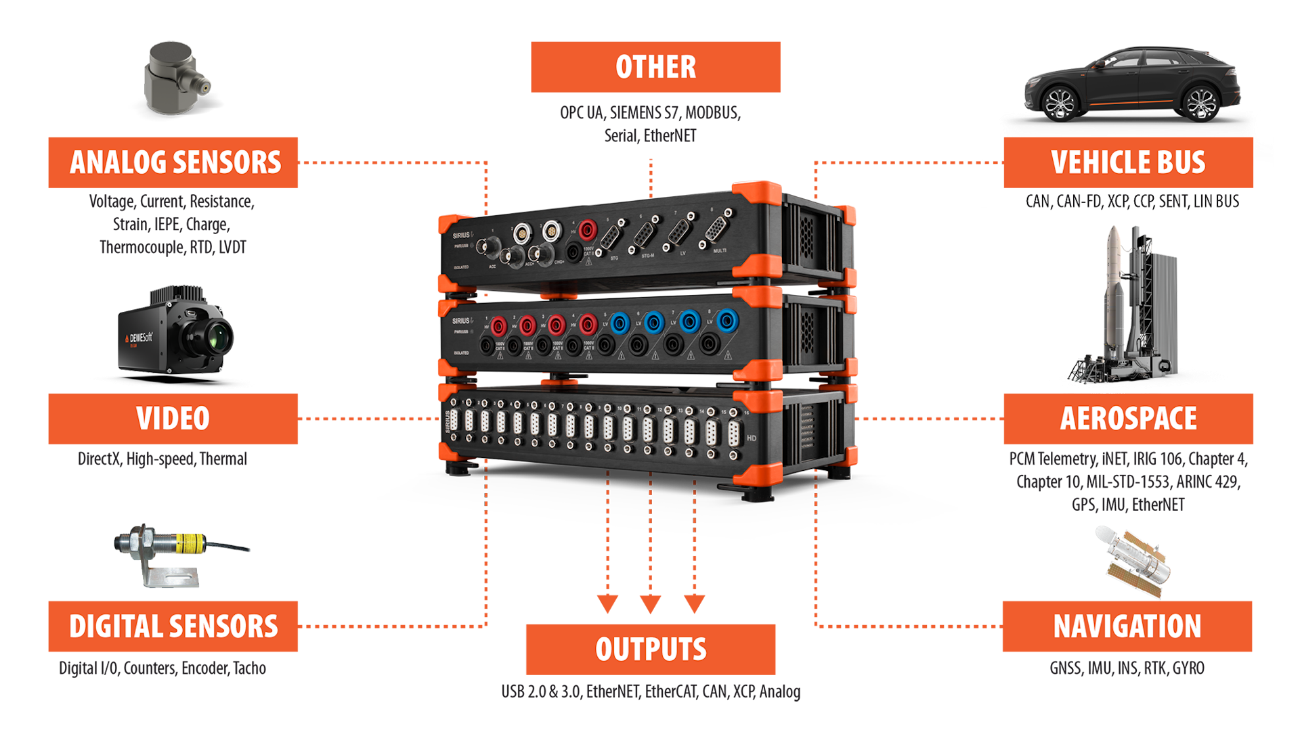

What can we measure?Dewesoft DAQ hardware and software are unique in both measurement capability and the number of supported data interfaces. The hardware is designed to be extremely versatile, rugged, and simple to use. Through close cooperation with test engineers across industries, Dewesoft has created data acquisition systems that feel intuitive and efficient in everyday work. What truly sets our hardware apart is its remarkable versatility. You can use Dewesoft DAQ systems as data recorders, oscilloscopes, FFT analyzers, power analyzers, or for many other test applications supported by our award-winning hardware and software.
|
|
Analog signalsWe offer signal conditioning amplifiers for almost every type of analog signal and sensor. Dewesoft DAQ systems are capable of sampling up to 15 MS/s per channel, with bandwidth up to 5 MHz and dynamic range up to 160 dB. We utilize 24-bit delta-sigma ADCs with anti-aliasing filters, as well as 16-bit SAR ADCs for sampling rates above 1 MS/s.
|
Digital signalsDewesoft’s patented SuperCounter® technology enables highly accurate angle, speed, and RPM measurements. It is available in the counter inputs found in nearly all Dewesoft DAQ systems. These inputs are compatible with a variety of digital counter sensors, encoder sensors, and tacho probes. Counter measurements are perfectly synchronized with high-speed analog input data.
|
Bus and network interfacesFor vehicle testing and flight data recording, support for modern automotive and aerospace data bus interfaces is essential. Dewesoft DAQ products can acquire data from nearly all common vehicle interfaces in use today, fully synchronized with analog and digital sensor data.
|
Other data sourcesIf you work in industrial environments, Industry 4.0 systems, or SCADA infrastructure, you will appreciate the connectivity of Dewesoft DAQ products. Our systems can easily connect to and serve measurement data through standard protocols. Recording video along with sensor data is also fully supported.
|
Cutting-edge signal conditioning technologyDewesoft has always been an innovator in signal conditioning technology. From DualCoreADC® to HybridADC®, we continue to push the limits of test and measurement performance. Learn more in our Dewesoft data acquisition technology overview. |
|
DUAL CORE ADC® - HIGH DYNAMIC RANGEDualCoreADC® amplifiers use two 24-bit delta-sigma ADCs with anti-aliasing filters on every analog channel, delivering an impressive 160 dB dynamic range in both time and frequency domains, with 200 kHz sampling per channel. |
HYBRID ADC® - HIGH SPEED, HIGH DYNAMIC RANGE, HIGH BANDWIDTHWhich ADC is better, SAR or Delta-sigma? With HybridADC®, the user no longer has to choose only one static approach. Each channel can be configured individually for high-bandwidth mode up to 5 MHz and 15 MS/s, or high-dynamic, alias-free mode up to 1 MS/s at less than 150 dB dynamic range. |
SUPER COUNTERS® - COUNTER MEASUREMENT TECHNOLOGYThis patented counter technology goes beyond conventional counters, which can only output integer values one sample later. SuperCounter® can extract accurate interpolated values such as 1.37, 1.87, and 2.37, fully synchronized in time and amplitude. |
GALVANIC ISOLATION - PROTECTION AND SIGNAL QUALITYHigh channel-to-channel and channel-to-ground isolation (±1000 V) protects systems from excessive voltage, prevents damage, and eliminates ground loops, ensuring excellent signal integrity. |
USB 2.0, USB 3.0, EtherCAT, Ethernet - Data InterfacesDewesoft offers DAQ systems with multiple data interfaces so you can select the one that best fits your architecture. EtherCAT is ideal for distributed architectures and compatibility with third-party EtherCAT masters, while USB is ideal for the highest acquisition rates. |
|
Dewesoft DAQ Product Lines |
|

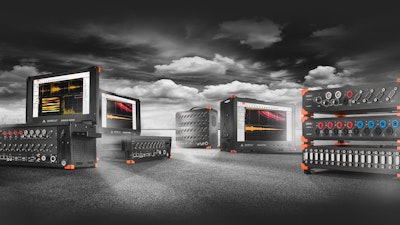

SIRIUS® - Your ultimate data acquisition solutionExperience the pinnacle of precision with SIRIUS®, Dewesoft’s top-tier DAQ platform. These systems are designed for the most demanding measurement scenarios where speed, accuracy, bandwidth, and flexibility matter most.
SIRIUS® systems are available in multiple formats for both laboratory and field testing. SIRIUS® Modular |

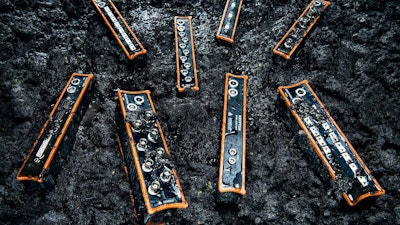

KRYPTON® - Your rugged testing workhorseKRYPTON® is the ideal solution for testing in harsh environments. It is designed to withstand heavy shock, extreme temperatures from -40 °C to +85 °C, and dusty, muddy, or wet conditions. With IP67 protection, KRYPTON® performs reliably in the toughest environments.
What makes KRYPTON® special is its ruggedness and modularity. It is the preferred choice for distributed DAQ systems that can handle data, power, and synchronization over a single cable. |

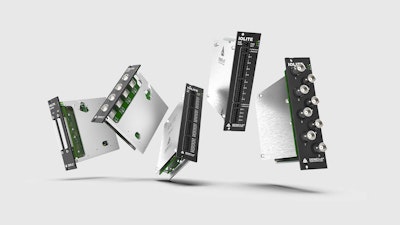

IOLITE® - Optimal price/performance DAQ systemsIOLITE® provides the perfect balance between performance and affordability. The system offers excellent signal conditioning while maintaining a low price per channel.
With real-time EtherCAT bus and redundant power supply, IOLITE® goes beyond conventional data acquisition. It can also serve as a front-end or feedback monitoring system for real-time control applications. |
OBSIDIAN® - Low-power embedded DAQ and data logging platformOBSIDIAN® is Dewesoft’s latest product line for low-power embedded data acquisition and logging applications. It is designed for fully autonomous operation using an embedded ARM and Linux-based CPU.
With internal SSD storage and SD card expansion, OBSIDIAN® can operate without an external PC, making it a truly standalone data logger. The OBSIDIAN® chassis is compatible with all IOLITE® signal conditioning cards, providing great flexibility for customized DAQ setups. |
