Overview High-Speed Cameras

High-speed camera solutions from leading global brands enable visualization of phenomena invisible to the naked eye. With ultra-slow-motion recording at high resolution, these systems capture detailed mechanical events and complex impact processes, making them indispensable tools in R&D, automotive crash testing, ballistics, fluid dynamics, material testing, and biomechanics.

Equipped with high-performance back-illuminated CMOS sensors and global shutter technology, the cameras deliver sharp images, low distortion, and minimal noise even at extremely high frame rates. When integrated with DAQ systems, DEWE VIETNAM provides synchronized triggering and precise time alignment between video and measurement data, enabling comprehensive and reliable test analysis.

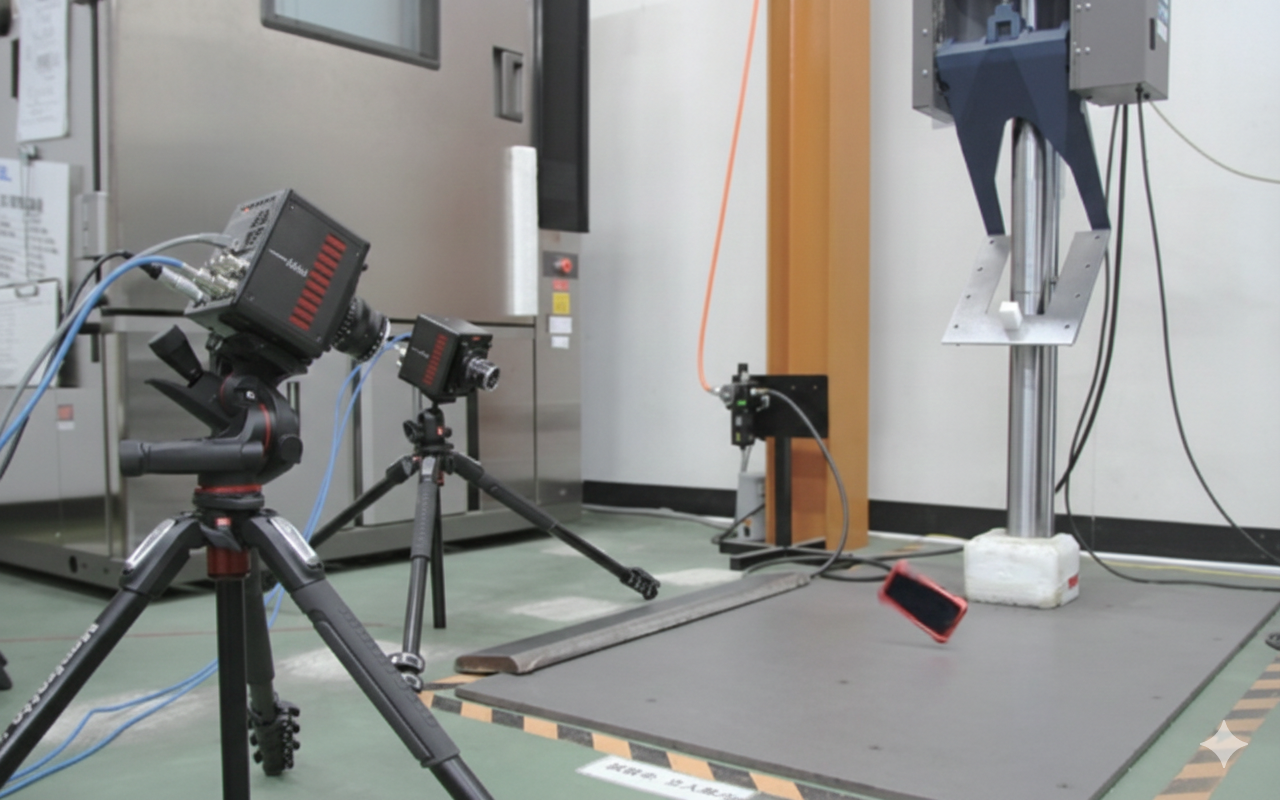

High-speed cameras for crash testing ballistics fluid dynamics and high-speed motion analysis



Products
Photron Nova S
Photron Nova S

The FASTCAM Nova S Series is the most versatile high-speed camera line, 1MP resolution at up to 16,000 fps (S16), 10µm back-illuminated sensor, ultra-high light sensitivity ISO 100,000 monochrome, suitable for R&D, automotive, and scientific imaging with wide dynamic range and large onboard memory.

· Key Specifications:

  • Resolution: 1024 x 1024 (1MP).
  • Max frame rate: 6,400–16,000 fps (model dependent).
  • ISO sensitivity: 100,000 monochrome / 16,000 color.
  • Pixel size: 10 µm back-illuminated.
  • Memory: Up to 128 GB.
  • Connector: Gigabit Ethernet.
  • Lens mount: Nikon G/C.
  • Application: General high-speed imaging.
Photron Nova S20
Photron Nova S20

The FASTCAM Nova S20 is the ultra-high-speed version in the Nova line, 1MP at 20,000 fps, advanced back-illuminated sensor, ISO 100,000 monochrome sensitivity, suitable for applications requiring extreme frame rates with superior image quality.

· Key Specifications:

  • Resolution: 1024 x 1024 (1MP).
  • Max frame rate: 20,000 fps.
  • ISO sensitivity: 100,000 monochrome.
  • Pixel size: 10 µm back-illuminated.
  • Memory: Up to 128 GB.
  • Connector: Gigabit Ethernet.
  • Lens mount: Nikon G.
  • Application: Ultra high-speed research.

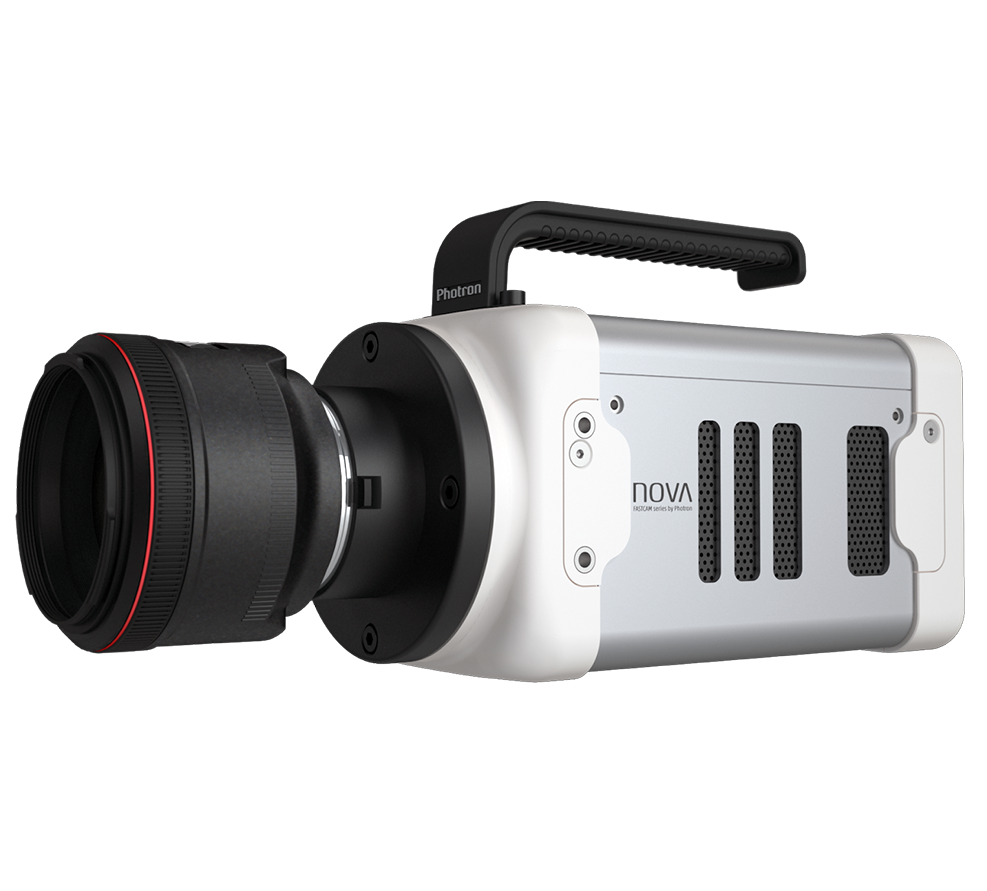

Photron Nova R3
Photron Nova R3

The FASTCAM Nova R Series is a rugged 4K ultra-high-speed camera, 4K resolution at up to 1,440 fps (R5-4K), back-illuminated sensor, high sensitivity, durable design for automotive crash testing and harsh environments.

· Key Specifications:

  • Resolution: 4096 x 2160 (4K).
  • Max frame rate: 1,000–1,440 fps at 4K.
  • ISO sensitivity: High monochrome/color.
  • Pixel size: Back-illuminated.
  • Memory: Large onboard.
  • Connector: CoaXPress/GigE.
  • Rugged: High shock/vibration.
  • Application: Crash test/high-speed 4K.

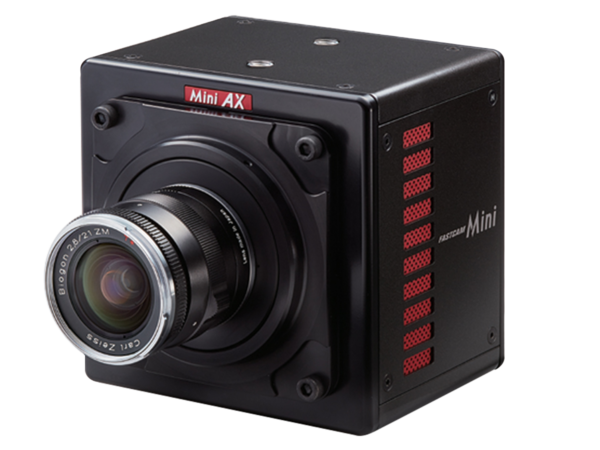

Photron Mini AX
Photron Mini AX

The FASTCAM Mini AX is a compact high-performance line, 1MP at up to 200,000 fps (AX200), 10µm back-illuminated sensor, ISO 40,000 monochrome sensitivity, suitable for biomechanics, fluid dynamics, and DIC with small footprint.

· Key Specifications:

  • Resolution: 1024 x 1024 (1MP).
  • Max frame rate: 50,000–200,000 fps (model dependent).
  • ISO sensitivity: 40,000 monochrome / 8,000 color.
  • Pixel size: 10 µm back-illuminated.
  • Memory: Up to 64 GB.
  • Connector: Gigabit Ethernet.
  • Lens mount: Nikon G/C.
  • Size: Compact lightweight.
Photron Mini R5
Photron Mini R5

The FASTCAM Mini R5-4K is a compact 4K high-speed camera in the Mini line, 4K at 1,250 fps, rugged design, suitable for automotive safety and material testing with high image quality.

· Key Specifications:

  • Resolution: 4K (4096 x 2304).
  • Max frame rate: 1,250 fps at 4K.
  • ISO sensitivity: High.
  • Memory: Large onboard.
  • Connector: Gigabit Ethernet.
  • Rugged: Yes.
  • Lens mount: Nikon G.
  • Application: Compact 4K high-speed.
Photron Mini WX
Photron Mini WX

The FASTCAM Mini WX is a compact high-resolution camera in the Mini line, higher resolution at 100,000 fps, high sensitivity, suitable for scientific and industrial high-speed imaging with small size.

· Key Specifications:

  • Resolution: 2048 x 2048 (higher res).
  • Max frame rate: 100,000 fps.
  • ISO sensitivity: High monochrome.
  • Memory: Up to 32 GB.
  • Connector: Gigabit Ethernet.
  • Lens mount: Nikon G.
  • Size: Compact.
  • Application: High-res compact.

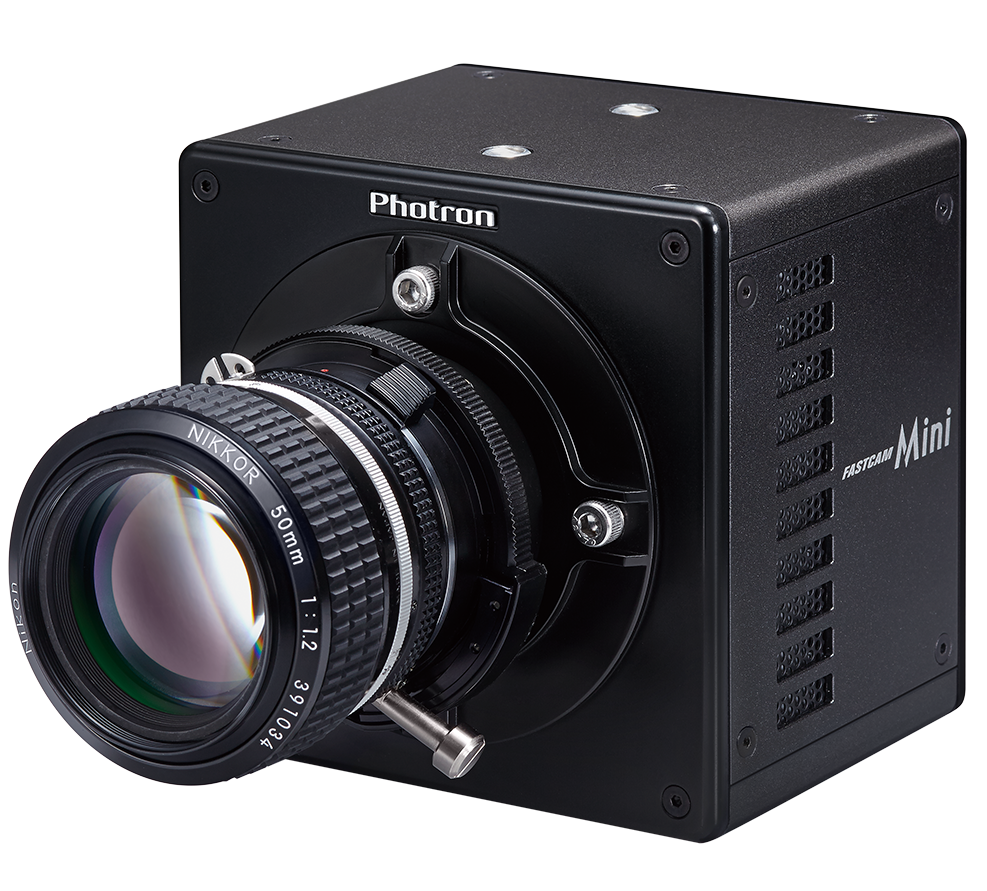

Photron Mini UX
Photron Mini UX

The FASTCAM Mini UX is a compact ultra-high-speed line, 1MP at up to 160,000 fps (UX100), back-illuminated sensor, ISO 20,000 monochrome sensitivity, suitable for offboard vehicle safety testing.

· Key Specifications:

  • Resolution: 1280 x 800.
  • Max frame rate: 100,000–160,000 fps.
  • ISO sensitivity: 20,000 monochrome.
  • Memory: Up to 32 GB.
  • Connector: Gigabit Ethernet.
  • Rugged: High G-shock.
  • Lens mount: Nikon G/C.
  • Application: Vehicle safety.

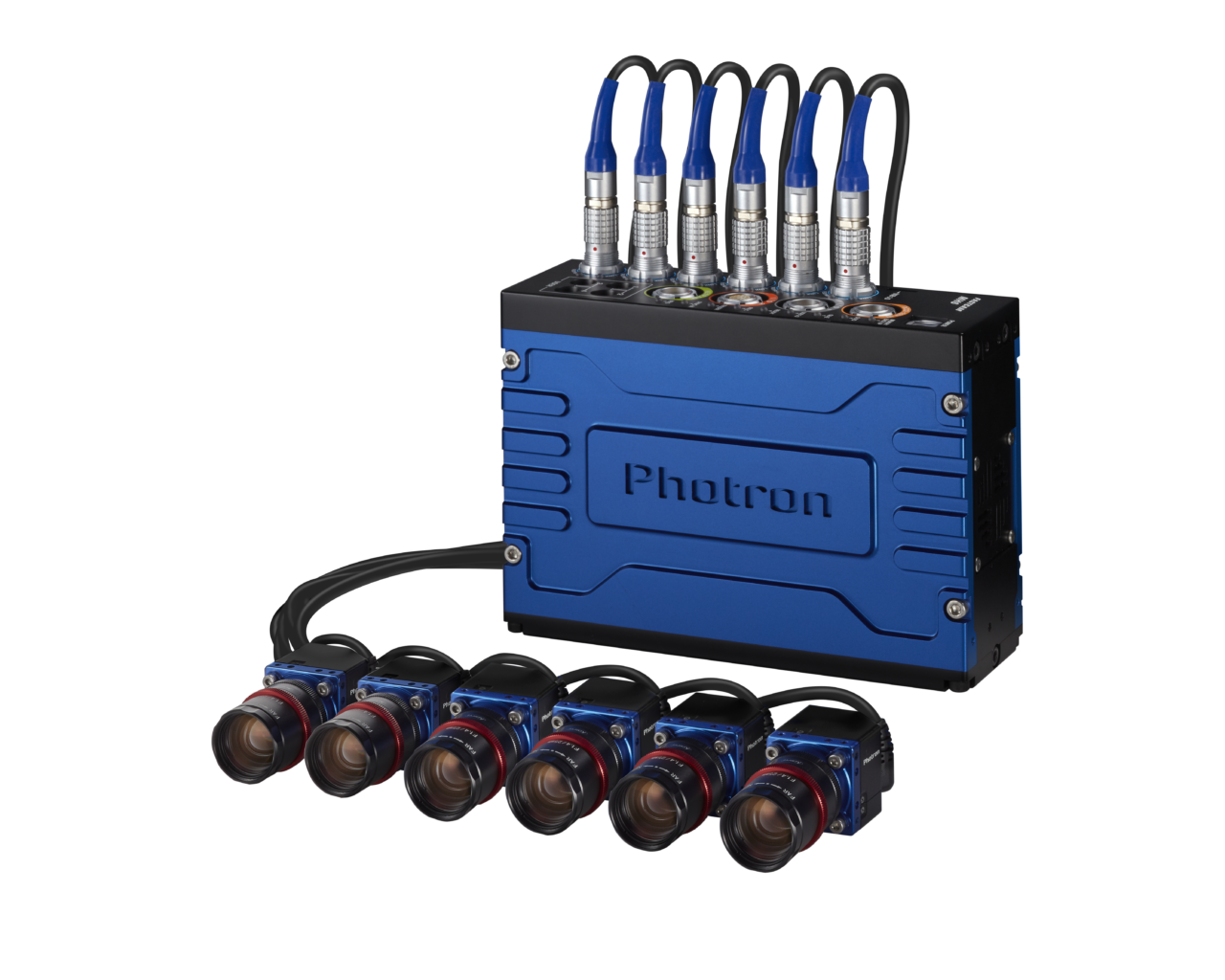

Photron MH6
Photron MH6

The FASTCAM MH6 is a rugged miniature multi-head HD camera, IP68 waterproof, 200g shock resistant, suitable for onboard vehicle safety testing with multiple synchronized heads.

· Key Specifications:

  • Resolution: HD (1080p).
  • Max frame rate: Thousands fps.
  • Protection: IP68 waterproof.
  • Shock: 200g.
  • Heads: Multiple synchronized.
  • Connector: Coaxial.
  • Size: Miniature.
  • Application: Onboard safety.

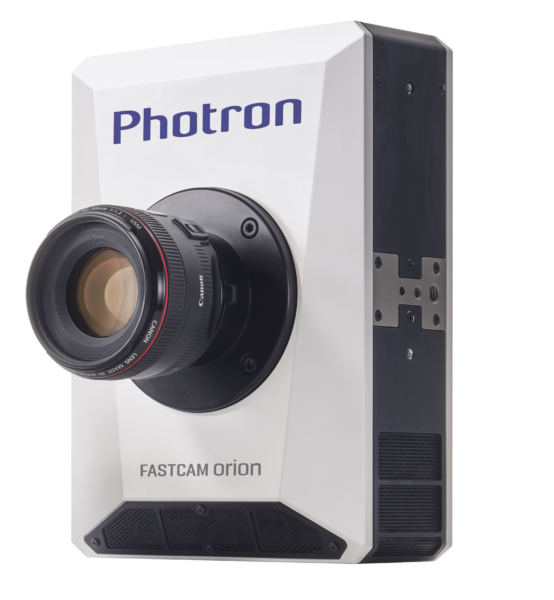

Photron Orion
Photron Orion

The FASTCAM Orion S40 is a high-performance camera with extreme frame rates, back-illuminated sensor, suitable for advanced research requiring ultra-high-speed imaging.

· Key Specifications:

  • Resolution: 1MP.
  • Max frame rate: Very high (S40 variant).
  • ISO sensitivity: High.
  • Memory: Large.
  • Connector: High-speed.
  • Lens mount: Nikon G.
  • Pixel size: Back-illuminated.
  • Application: Advanced research.

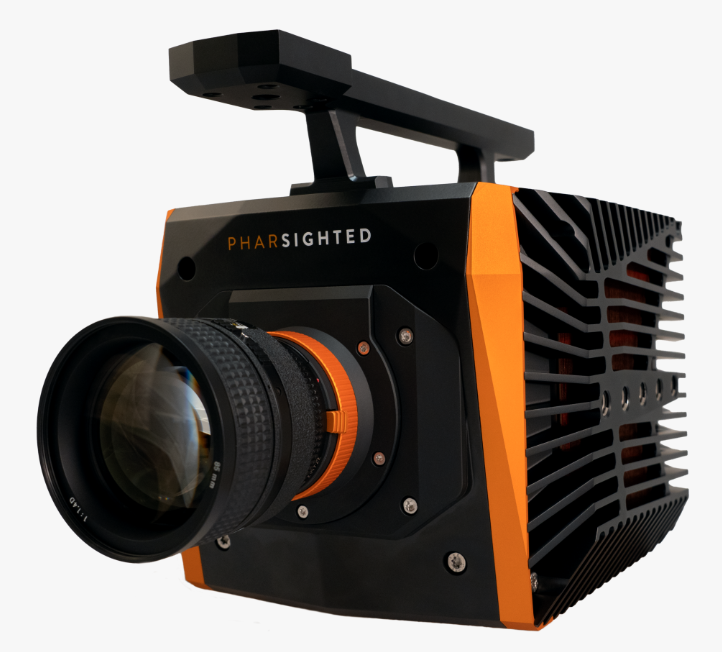

Photron Pharsighted
Photron Pharsighted

The Pharsighted E9 is an ultra high-speed dedicated camera, extreme frame rates for scientific imaging, advanced sensor for maximum speed applications.

· Key Specifications:

  • Resolution: Optimized for speed.
  • Max frame rate: Ultra high (millions fps).
  • ISO sensitivity: High.
  • Memory: Onboard.
  • Connector: High-speed interface.
  • Type: Ultra high-speed.
  • Pixel size: Small.
  • Application: Scientific ultra-speed.
