The FASTCAM Nova S20 is the ultra-high-speed version in the Nova line, 1MP at 20,000 fps, advanced back-illuminated sensor, ISO 100,000 monochrome sensitivity, suitable for applications requiring extreme frame rates with superior image quality.

· Key Specifications:

• Resolution: 1024 x 1024 (1MP).
• Max frame rate: 20,000 fps.
• ISO sensitivity: 100,000 monochrome.
• Pixel size: 10 µm back-illuminated.
• Memory: Up to 128 GB.
• Connector: Gigabit Ethernet.
• Lens mount: Nikon G.
• Application: Ultra high-speed research.

The FASTCAM Orion S40 is a high-performance camera with extreme frame rates, back-illuminated sensor, suitable for advanced research requiring ultra-high-speed imaging.

· Key Specifications:

• Resolution: 1MP.
• Max frame rate: Very high (S40 variant).
• ISO sensitivity: High.
• Memory: Large.
• Connector: High-speed.
• Lens mount: Nikon G.
• Pixel size: Back-illuminated.
• Application: Advanced research.

The FASTCAM Mini R5-4K is a compact 4K high-speed camera in the Mini line, 4K at 1,250 fps, rugged design, suitable for automotive safety and material testing with high image quality.

· Key Specifications:

• Resolution: 4K (4096 x 2304).
• Max frame rate: 1,250 fps at 4K.
• ISO sensitivity: High.
• Memory: Large onboard.
• Connector: Gigabit Ethernet.
• Rugged: Yes.
• Lens mount: Nikon G.
• Application: Compact 4K high-speed.

The FASTCAM MH6 is a rugged miniature multi-head HD camera, IP68 waterproof, 200g shock resistant, suitable for onboard vehicle safety testing with multiple synchronized heads.

· Key Specifications:

• Resolution: HD (1080p).
• Max frame rate: Thousands fps.
• Protection: IP68 waterproof.
• Shock: 200g.
• Heads: Multiple synchronized.
• Connector: Coaxial.
• Size: Miniature.
• Application: Onboard safety.

The FASTCAM Nova R Series is a rugged 4K ultra-high-speed camera, 4K resolution at up to 1,440 fps (R5-4K), back-illuminated sensor, high sensitivity, durable design for automotive crash testing and harsh environments.

· Key Specifications:

• Resolution: 4096 x 2160 (4K).
• Max frame rate: 1,000–1,440 fps at 4K.
• ISO sensitivity: High monochrome/color.
• Pixel size: Back-illuminated.
• Memory: Large onboard.
• Connector: CoaXPress/GigE.
• Rugged: High shock/vibration.
• Application: Crash test/high-speed 4K.

The Pharsighted E9 is an ultra high-speed dedicated camera, extreme frame rates for scientific imaging, advanced sensor for maximum speed applications.

· Key Specifications:

• Resolution: Optimized for speed.
• Max frame rate: Ultra high (millions fps).
• ISO sensitivity: High.
• Memory: Onboard.
• Connector: High-speed interface.
• Type: Ultra high-speed.
• Pixel size: Small.
• Application: Scientific ultra-speed.

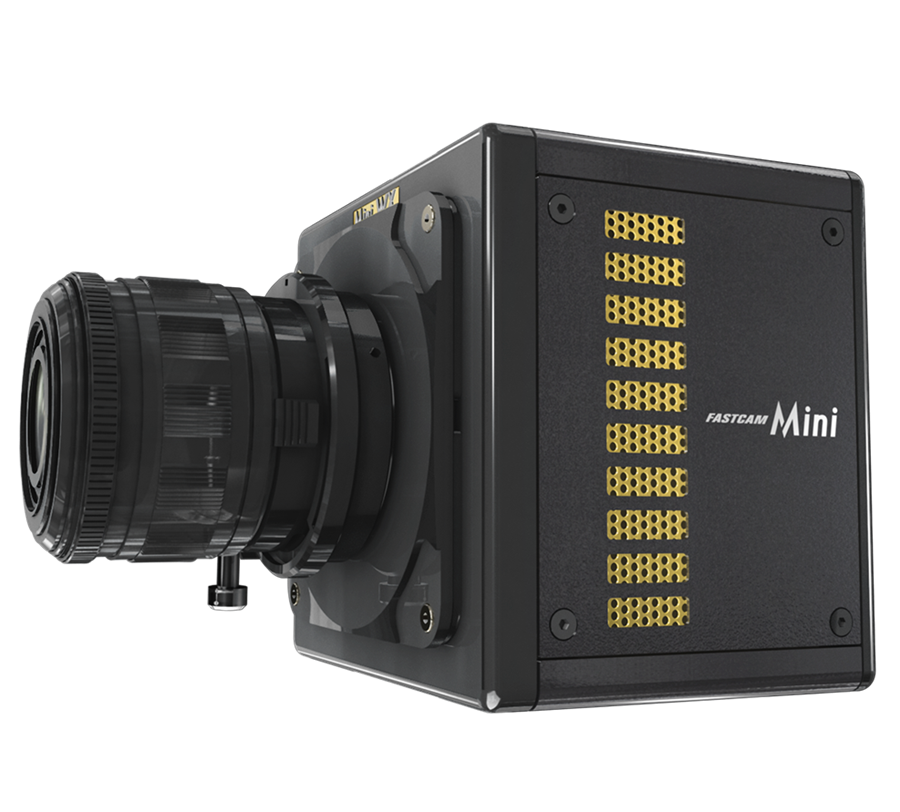

The FASTCAM Mini AX is a compact high-performance line, 1MP at up to 200,000 fps (AX200), 10µm back-illuminated sensor, ISO 40,000 monochrome sensitivity, suitable for biomechanics, fluid dynamics, and DIC with small footprint.

· Key Specifications:

• Resolution: 1024 x 1024 (1MP).
• Max frame rate: 50,000–200,000 fps (model dependent).
• ISO sensitivity: 40,000 monochrome / 8,000 color.
• Pixel size: 10 µm back-illuminated.
• Memory: Up to 64 GB.
• Connector: Gigabit Ethernet.
• Lens mount: Nikon G/C.
• Size: Compact lightweight.

The FASTCAM Mini UX is a compact ultra-high-speed line, 1MP at up to 160,000 fps (UX100), back-illuminated sensor, ISO 20,000 monochrome sensitivity, suitable for offboard vehicle safety testing.

· Key Specifications:

• Resolution: 1280 x 800.
• Max frame rate: 100,000–160,000 fps.
• ISO sensitivity: 20,000 monochrome.
• Memory: Up to 32 GB.
• Connector: Gigabit Ethernet.
• Rugged: High G-shock.
• Lens mount: Nikon G/C.
• Application: Vehicle safety.
