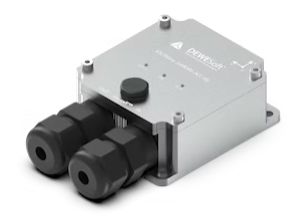

IOLITEicw 3xMEMS-ACC-S is a low-noise triaxial MEMS accelerometer device with EtherCAT interface, optimized for high dynamic range measurements. It is designed for precise vibration monitoring with very low spectral noise density and IP67 protection.
Applications:
Structural health monitoring and ambient vibration measurements, low-level vibration monitoring, long-term monitoring of buildings, bridges and large structures where very low noise is required.
Technical specifications
– MEMS accelerometer axes: 3
– Measurement range: ±15 g
– Max. sample rate: 1 kS/s
– Linearity error (-1 g … +1 g): 0.05 % FS
– Power consumption: 1500 mW
– Supply voltage: 12–48 V
– Operating temperature: -40 °C … 65 °C
– IP rating: IP67
– Weight: 575 g
IOLITEicw 3xMEMS-ACC-40g is an EtherCAT triaxial MEMS accelerometer device designed for vibration monitoring where higher g-ranges are required. It offers software-selectable ranges up to ±40 g with high sampling rate and IP67 protection.
Applications:
Structural monitoring and vibration measurements in harsher environments, condition monitoring of large machinery and structures, vibration testing requiring higher acceleration ranges.
Technical specifications
– MEMS accelerometer axes: 3
– Measurement ranges (software selectable): ±10, ±20, ±40 g
– Max. sample rate: 4 kS/s
– Linearity error (smallest range): 0.1 % FS
– Power consumption: 1300 mW
– Supply voltage: 12–48 V
– Operating temperature: -40 °C … 65 °C
– IP rating: IP67
– Weight: 550 g
IOLITEicw 2xMEMS-INC is an EtherCAT inclinometer device intended for slow-changing tilt monitoring. It provides high resolution and relative accuracy for inclination measurements with IP67 protection.
Applications:
Tilt monitoring of structures and foundations, long-term inclination monitoring of bridges/buildings, deformation and settlement tracking, structural health monitoring applications.
Technical specifications
– MEMS inclinometer (valid in range): ±15°
– Relative accuracy (23°C): 0.01°
– Resolution: 0.001°
– Power consumption: 1300 mW
– Supply voltage: 12–48 V
– Operating temperature: -40 °C … 65 °C
– IP rating: IP67
– Weight: 550 g
IOLITEicw 1xMEMS-ACC-Z is an EtherCAT single-axis MEMS accelerometer device for vibration monitoring. It offers software-selectable ranges and supports an optional dedicated digital temperature input, with IP67 protection for outdoor and industrial installations.
Applications:
Single-axis vibration monitoring, structural health monitoring, condition monitoring of large structures and machines, long-term vibration measurements in industrial environments.
Technical specifications
– MEMS accelerometer axes: 1
– Measurement ranges (software selectable): ±2, ±4, ±8 g
– Max. sample rate: 4 kS/s
– Linearity error (smallest range): 0.1 % FS
– Interface connector: RJ45
– Power consumption: 1300 mW
– Supply voltage: 12–48 V
– Operating temperature: -40 °C … 65 °C
– IP rating: IP67
– Weight: 550 g
IOLITEicw 3xMEMS-ACC-8g is an EtherCAT triaxial MEMS accelerometer device for structural monitoring and vibration measurements. It provides software-selectable acceleration ranges and supports optional inclinometer channels and a dedicated digital temperature input.
Applications:
Structural health monitoring (bridges, buildings, towers), vibration monitoring and analysis, long-term condition monitoring of large structures and machines.
Technical specifications
– MEMS accelerometer axes: 3
– Measurement ranges (software selectable): ±2, ±4, ±8 g
– Max. sample rate: 4 kS/s
– Linearity error (smallest range): 0.1 % FS
– Power consumption: 1300 mW
– Supply voltage: 12–48 V
– Operating temperature: -40 °C … 65 °C
– IP rating: IP67
– Weight: 550 g
