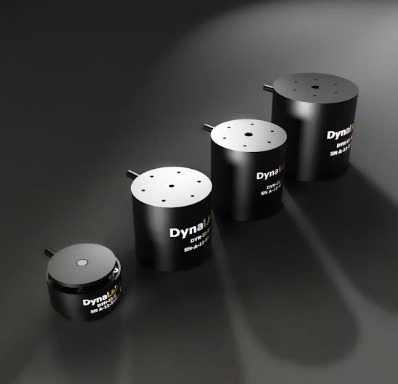

Inertial Shakers are compact vibration exciters optimized for low-frequency performance and mobile testing. Their small size and lightweight design support easy mounting at any angle and quick setup.

Applications:

Vibration and modal testing, low-frequency excitation, automotive squeak & rattle testing, civil engineering resonance analysis, shipbuilding, and academic research.

Technical specifications

– Output Force (Sinus): 5, 10, 20, 40 N
– Frequency range: 10 – 3000 Hz (model dependent)
– Displacement (Pk-Pk): 1 – 8 mm
– Total mass: 0.06 – 0.5 kg
– Integrated amplifier with sine generator on all models
