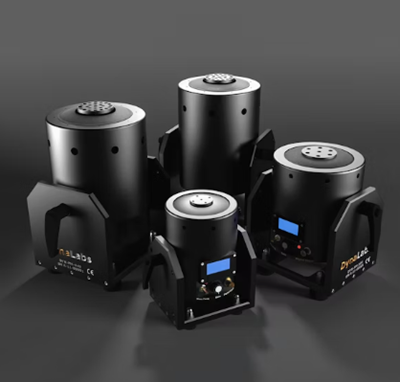

Permanent Magnet Shakers are compact electrodynamic exciters designed for vibration and modal testing with high DUT capacity despite a small form factor. Models such as DYN-PM-20 and DYN-PM-100 include integrated amplifiers and sine generators for streamlined testing.

Applications:

General vibration testing, modal testing with stinger, shock testing, sensor calibration, fatigue and resonance tests, electronics and component dynamics.

Technical specifications

– Output Force (Sinus): 10 – 440 N
– Frequency range:0 – 12 kHz
– Displacement (Pk-Pk): 4 – 25 mm
– Acceleration: up to 100 g (max)
– Payload (vertical): 0.4 – 2.5 kg
– Integrated amplifier: on smaller models
– External amplifier support: on larger models
– Adjustable signal input and external control supported
