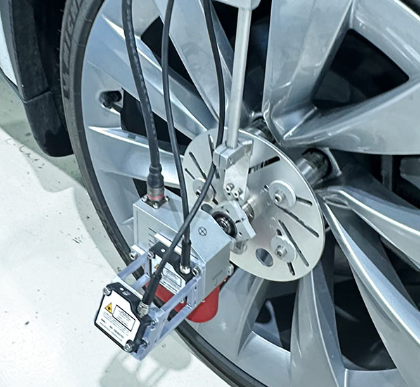

HMS (Height Measurement System) from Sensoric Solutions extends vehicle dynamics measurement capabilities using optical sensors. The system measures vehicle ride height with high precision, while also determining wheel camber angle, vehicle pitch, and roll — all data directly referenced to the road surface.

HMS (Height Measurement System) from Sensoric Solutions extends vehicle dynamics measurement capabilities using optical sensors. The system measures vehicle ride height with high precision, while also determining wheel camber angle, vehicle pitch, and roll — all data directly referenced to the road surface.

Applications:

Vehicle dynamics development, tire and suspension testing, motorsport, ADAS testing, and indoor or proving ground testing.

Technical Specifications

– Measurement rate: >1,000 Hz
– Repeatability: <0.1 mm
– Linearity: ±0.23 % FS
– Pitch & roll angle: directly measured relative to road surface, independent of slope or banking
– Camber angle: 2 sensors per wheel for high-accuracy measurement
– Synchronized data: CAN / CAN-FD output via integrator box
– Sensor dimensions: 49 × 40.3 × 13.6 mm
– Sensor weight: 67 g
– Protection class: IP67 (dust & water resistant)
