OMS 7

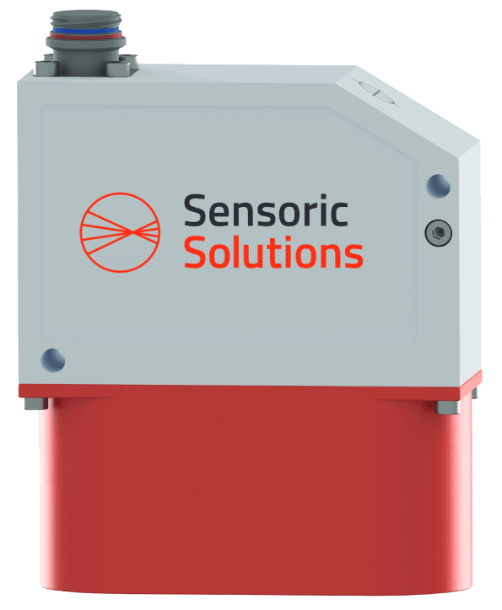

OMS 7 is a 2-axis optical sensor with integrated IMU, designed for precise measurement of speed (up to 450 km/h), distance, slip angle, pitch, roll, acceleration, and POI with accuracy better than <0.1°.

OMS 7 is a 2-axis optical sensor with integrated IMU, designed for precise measurement of speed (up to 450 km/h), distance, slip angle, pitch, roll, acceleration, and POI with accuracy better than <0.1°. The device features sensor fusion technology, a 1 kHz update rate, CAN output, Ethernet configuration capability, and high-lifetime IR LEDs. Intelligent signal processing ensures reliable performance with simple installation and operation.
Applications:

Longitudinal and lateral vehicle dynamics measurement, tire and brake performance evaluation, indoor testing, motorsport, terrain surveying, ADAS validation, railway applications, construction machinery, motorcycles, parking test scenarios, and industrial applications.

Technical Specifications :
– Maximum speed: 450 km/h
– Accuracy: <0.1°
– Update rate: 1 kHz
– Slip angle, Y/Z / POI / Pitch / Roll
– Acceleration: X/Z
– Output: CAN
– Configuration: Ethernet
– High-lifetime IR LEDs
– Intelligent signal processing
