OMS Race

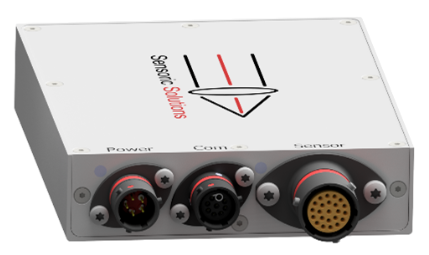

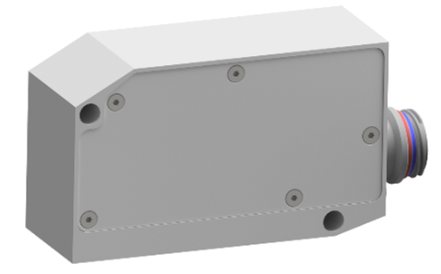

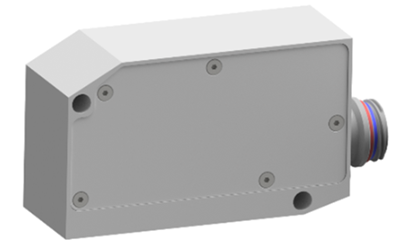

OMS Race is a compact and lightweight 2-axis optical sensor with integrated IMU, optimized for motorsport applications. It measures speed up to 450 km/h, distance, slip angle, pitch, roll, longitudinal and vertical acceleration (X/Z), and POI with accuracy better than <0.1°

OMS Race is a compact and lightweight 2-axis optical sensor with integrated IMU, optimized for motorsport applications. It measures speed up to 450 km/h, distance, slip angle, pitch, roll, longitudinal and vertical acceleration (X/Z), and POI with accuracy better than <0.1°. The device utilizes the proven spatial filter principle combined with advanced signal processing, delivers a 1 kHz update rate, provides CAN / CAN-FD output, diagnostic data via CAN, and enables easy sensor or ECU replacement. High-lifetime IR LEDs ensure reliable operation and simple installation.

Applications:

Professional motorsport series, longitudinal and lateral vehicle dynamics measurement, tire and brake performance testing, indoor testing, terrain surveying, ADAS validation, construction machinery, motorcycles, parking test scenarios, and industrial applications.

Technical Specifications:

– Maximum speed: 450 km/h
– Accuracy: <0.1°
– Update rate: 1 kHz
– Slip angle, Y/Z / POI / Pitch / Roll
– Acceleration: X/Z
– Output: CAN / CAN FD
– Diagnostic data: available via CAN
– Principle: Spatial filter with advanced signal processing
– High-lifetime IR LEDs
